Wheel Sensor Skids For Rear Axle Fit 2005-2023 Toyota Tacoma
Say goodbye to broken rear wheel sensors with Archive Garage Sensor Skids.

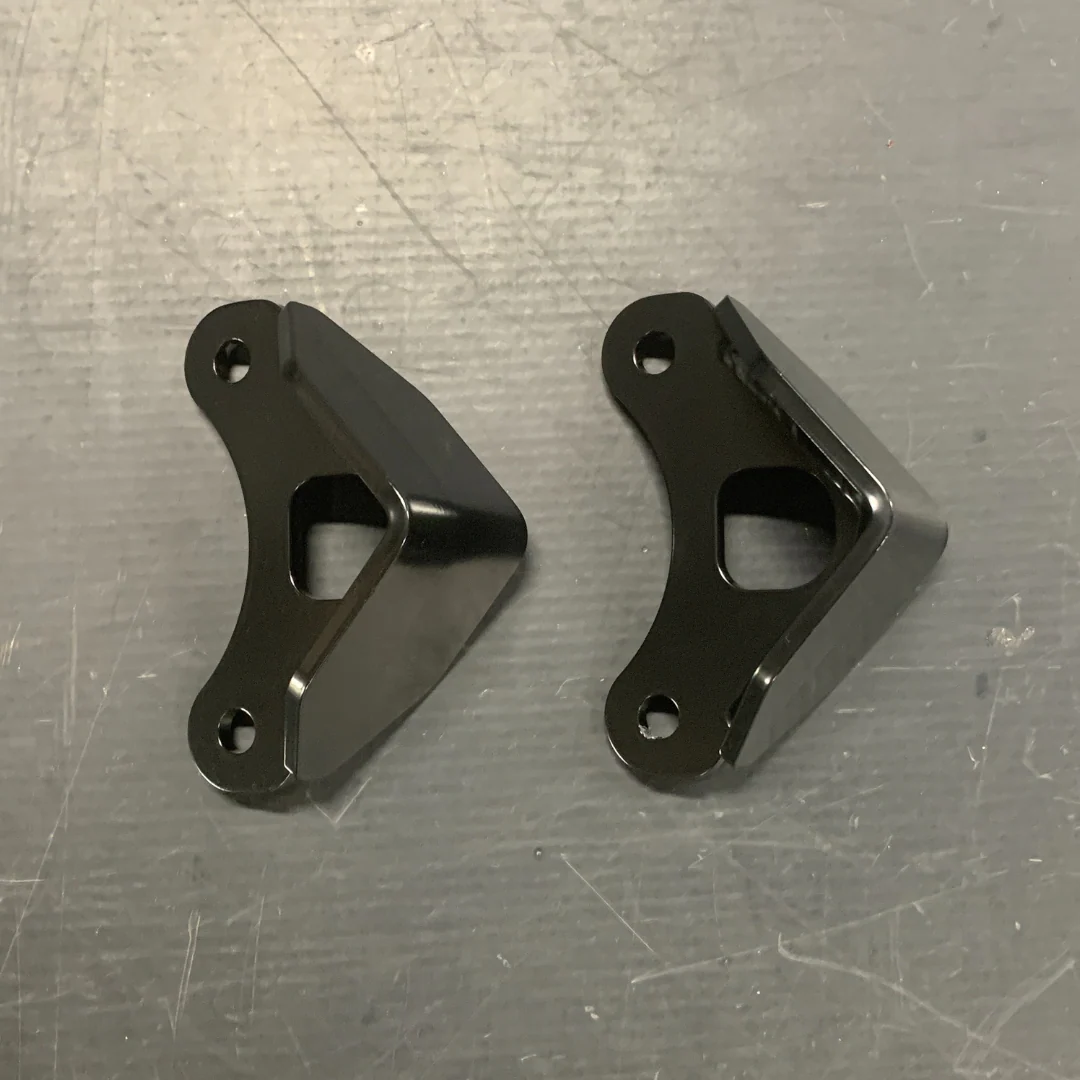

1 Pair of Tacoma rear wheel sensor skids in 3/16" high strength steel (2005+) for rear axle only.
Free shipping to 50 states, Guam, PR (Canadian shipping available for extra $30 USD)
Primed and powdercoated black
Install Instructions (time 15-30mins):
1. Block front wheels, recommend that rear axle be raised just off the ground and placed on jackstands, to remove weight off nuts/studs.
2. Use narrow flat blade screwdriver to release wheel sensor connectors
3. Use 14mm socket to remove 2 nuts per side.

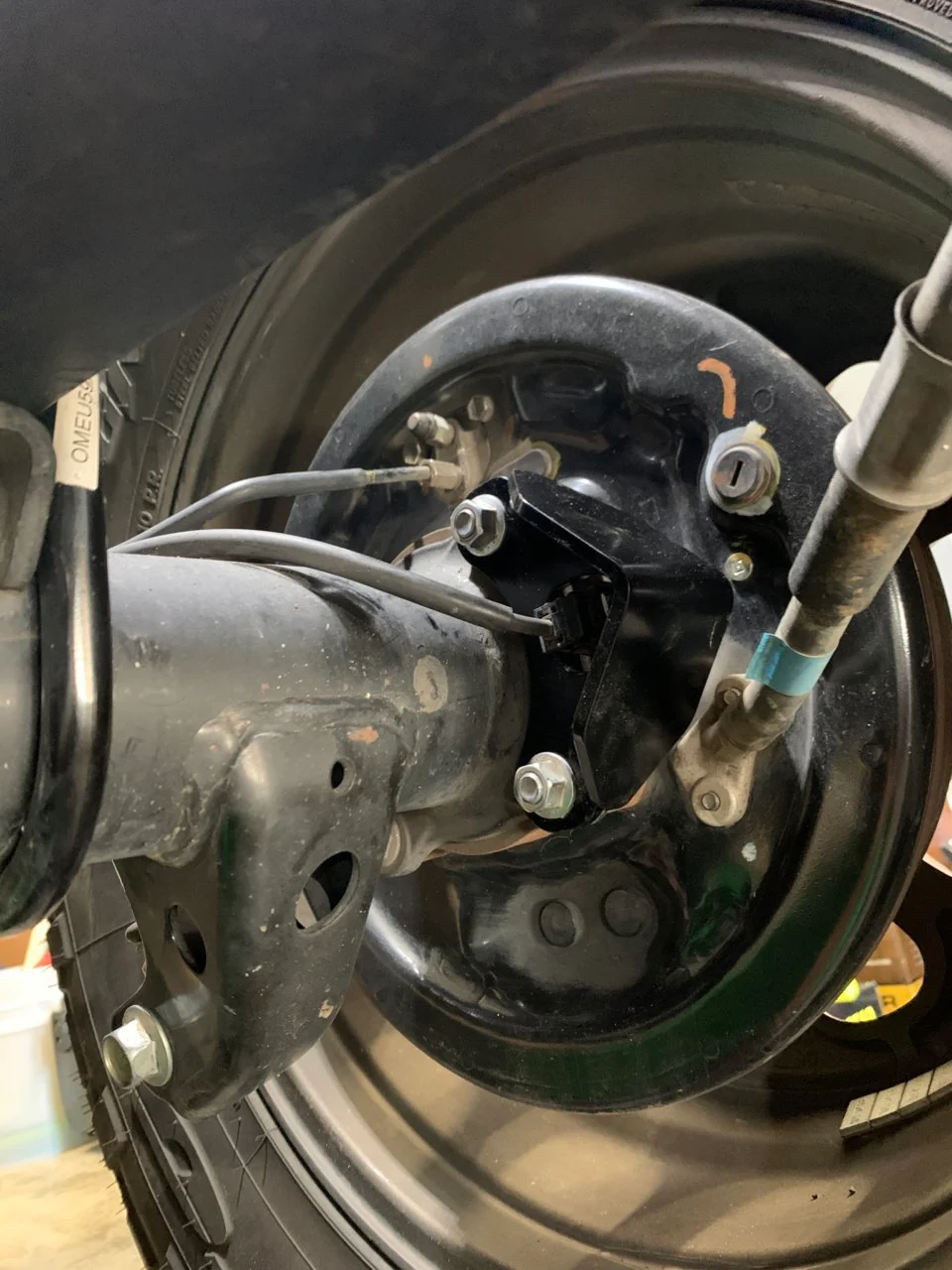

4. Place skid brackets on studs WITH WELD BEAD INBOARD TOWARDS DIFF (weld should be visible to you when installed)
5. Reinstall factory nuts and torque nuts to factory spec 27 lbft
6. Plug sensor connectors back in
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Say goodbye to broken rear wheel sensors with Archive Garage Sensor Skids.
1 Pair of Tacoma rear wheel sensor skids in 3/16" high strength steel (2005+) for rear axle only.
Free shipping to 50 states, Guam, PR (Canadian shipping available for extra $30 USD)
Primed and powdercoated black
Install Instructions (time 15-30mins):
1. Block front wheels, recommend that rear axle be raised just off the ground and placed on jackstands, to remove weight off nuts/studs.
2. Use narrow flat blade screwdriver to release wheel sensor connectors
3. Use 14mm socket to remove 2 nuts per side.
4. Place skid brackets on studs WITH WELD BEAD INBOARD TOWARDS DIFF (weld should be visible to you when installed)
5. Reinstall factory nuts and torque nuts to factory spec 27 lbft
6. Plug sensor connectors back in
