Long Travel Spring Under Kit Fits 2005-2023 Toyota Tacoma

The long travel spring under kit was designed for maximum rear suspension performance without making the installation difficult for average person.

For best results this kit should be combined with the Dirt King bedcage and Deaver H70HD leaf under springs. The complete package paired with a custom drive shaft allows for 18" of usable travel.

Deaver H70HD Progressive Series springs are high-quality 10-leaf units fabricated with high grade 5160 “American Made” steel designed for the Tacoma 2WD / 4WD. A higher leaf count spring allows the use of thinner leaf material that yields a more flexible progressive leaf stack, or pyramid, producing a much smoother spring rate curve throughout the complete suspension cycle. The even, linear compression rate curve of our progressive system spring is the primary key to excellent ride quality.

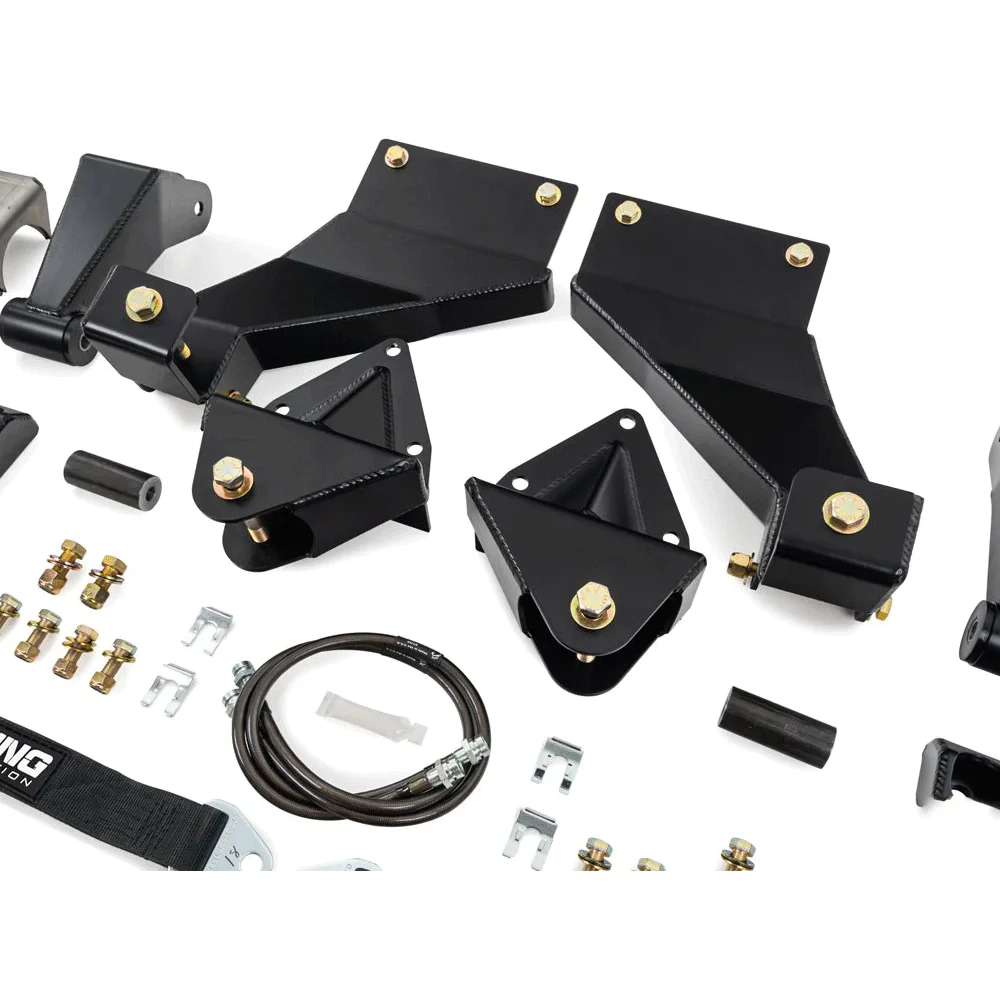

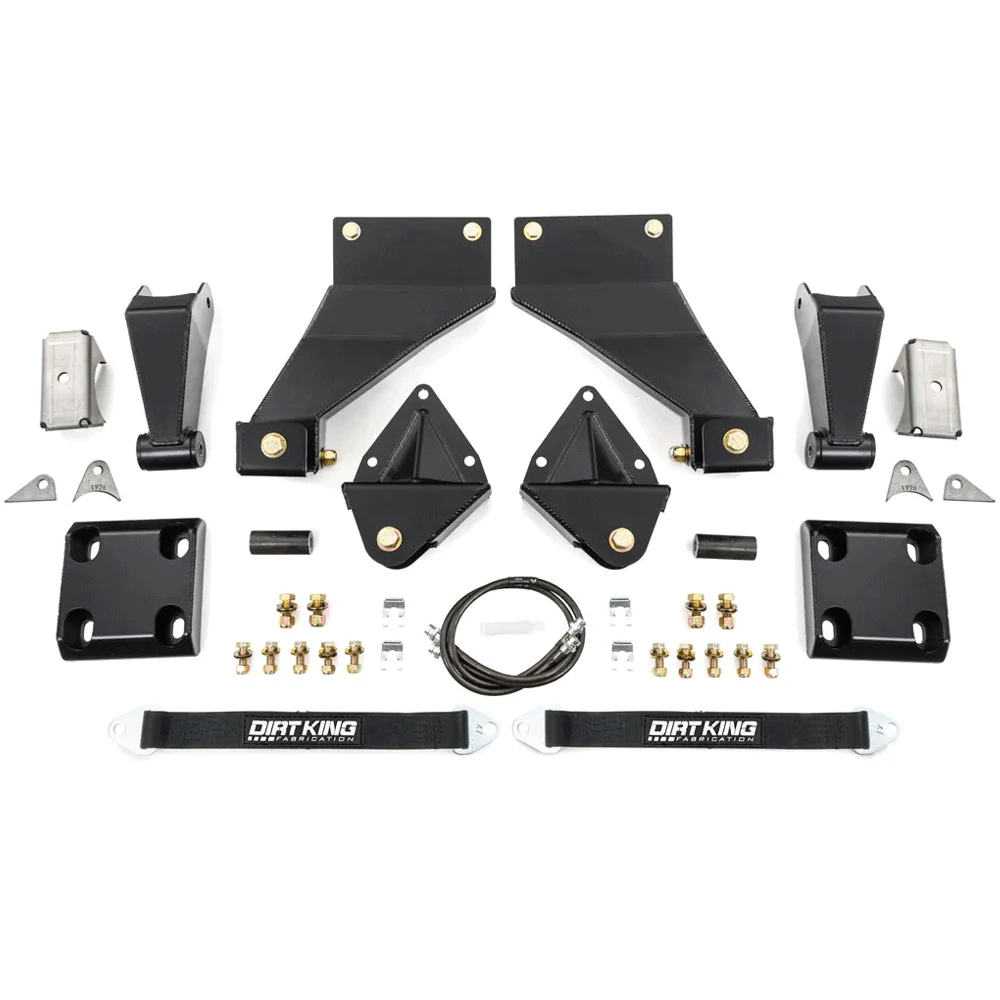

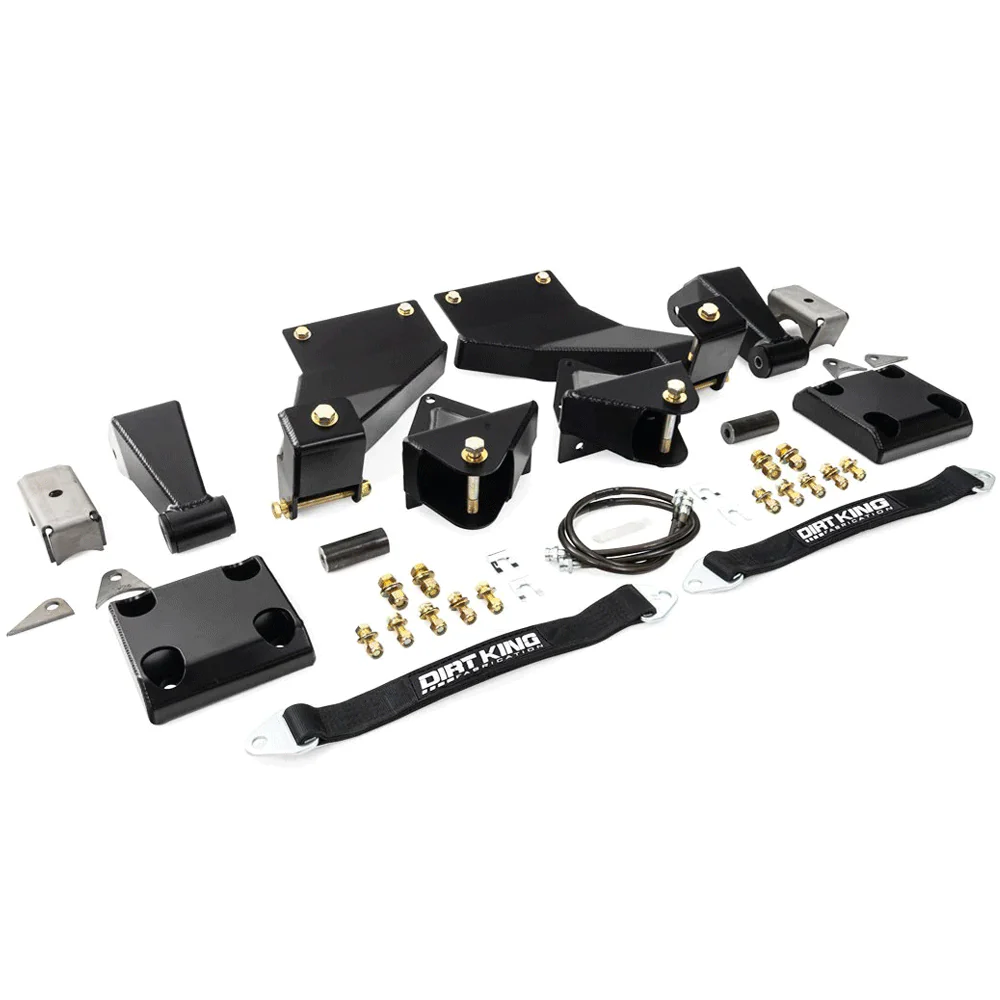

Included:
✔ Long travel shackles
✔ Leaf under u-bolt plates

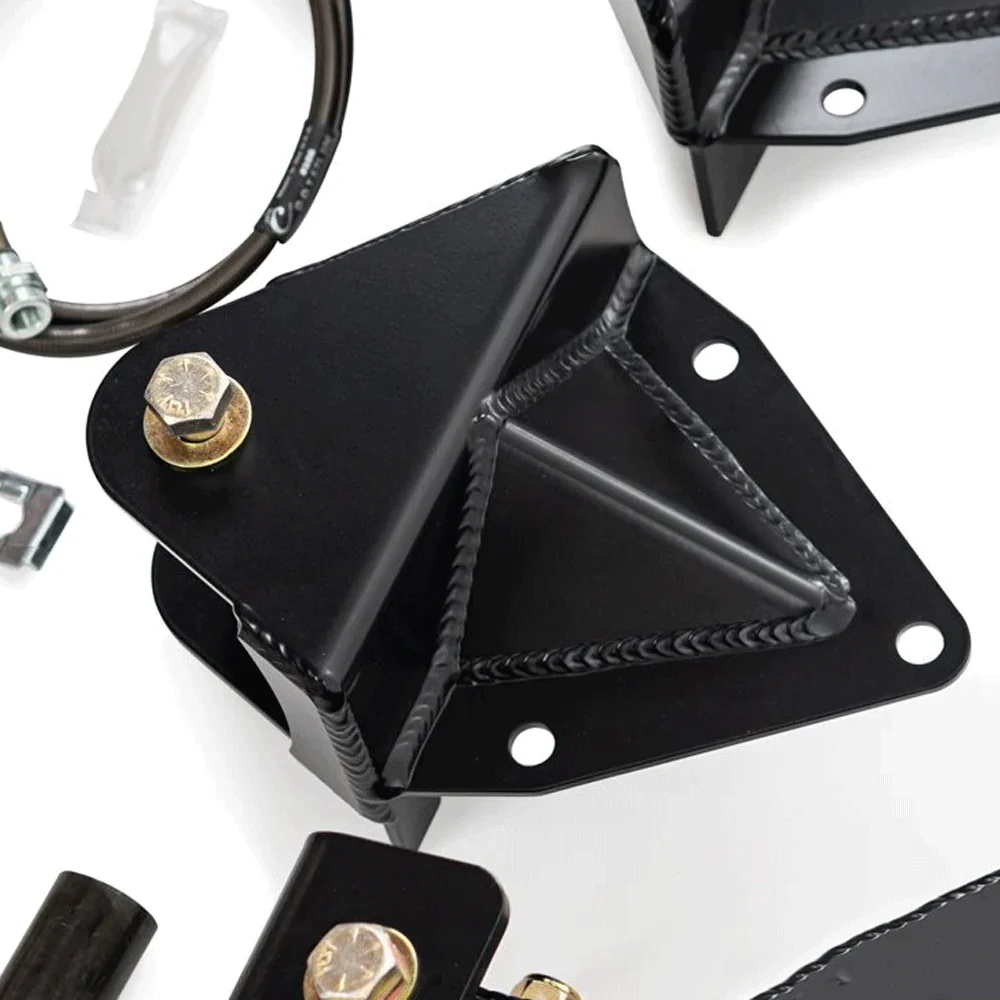

✔ Leaf under front hangers
✔ Rear shackle hangers
✔ 18" quad wrapped limit straps
✔ Weld on limit strap tabs
✔ Leaf spring perches
✔ DOT approved extended brake lines
✔ Grade 8 mounting hardware

Fitment: 2005-2023 Toyota Tacoma 2WD / 4WD

Please Note:
➜ The factory drive shaft can be retained but will limit 2" of down travel. Even with the 2" travel loss it still achieves a respectable 16" of wheel travel.
➜ Deaver H70HD Springs sold separately

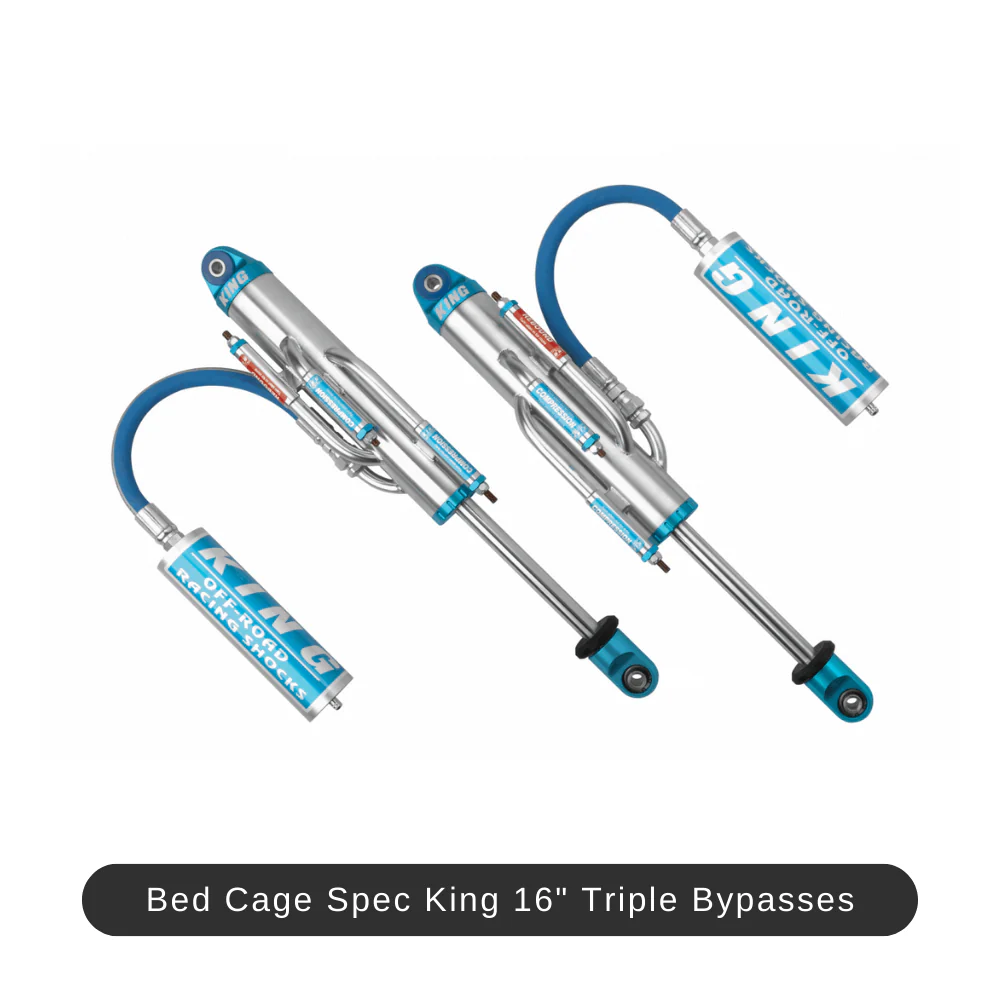

➜ Bed Cage Spec King 16" Triple Bypasses (sold separately), requires Dirt King Prefab Bed Cage
