Hood QuickLIFT PLUS (Max Lift Edition) Fits 2016-2023 Toyota Tacoma

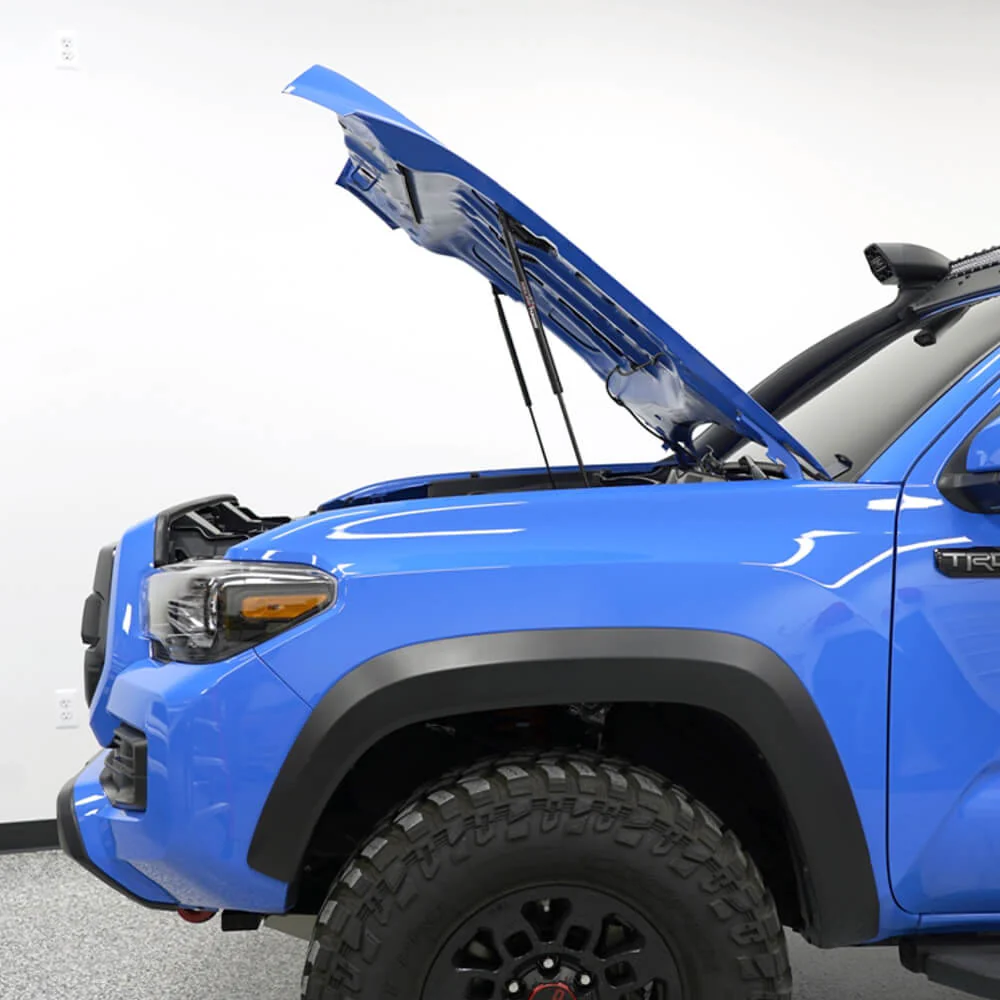

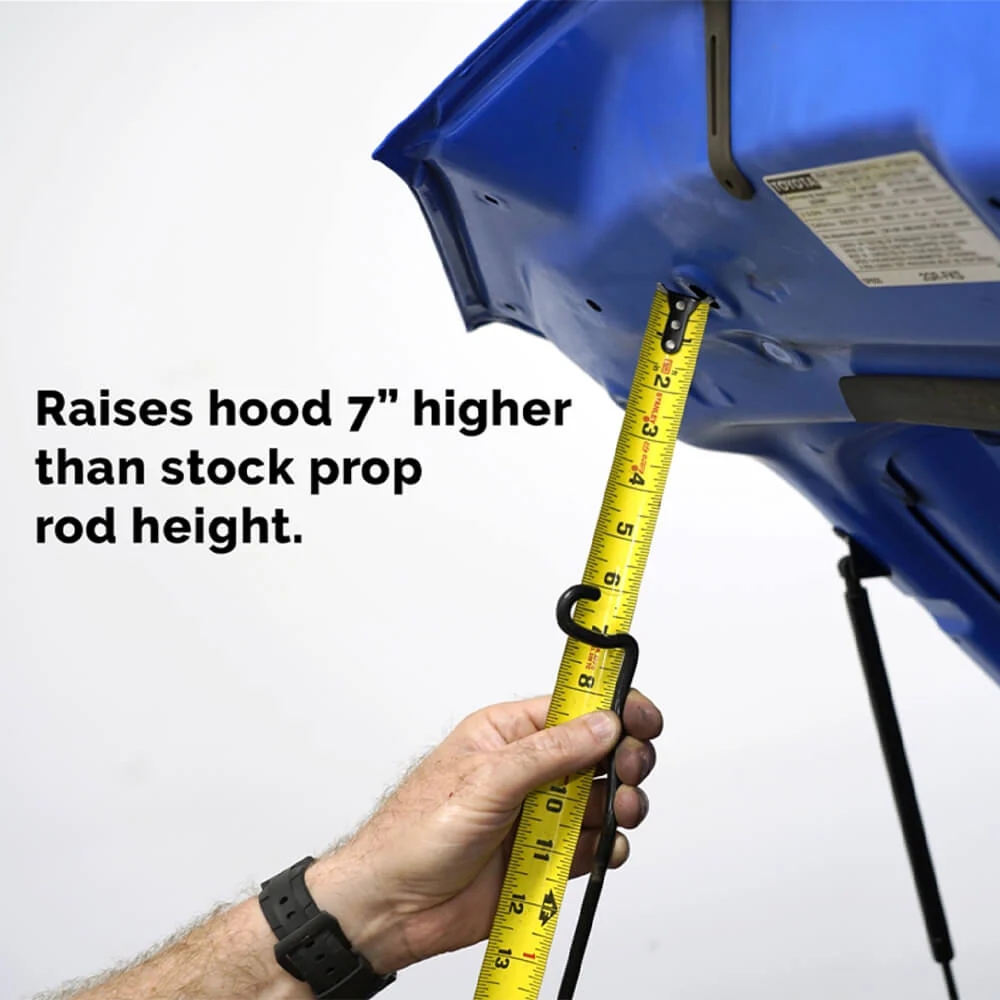

Max Lift Edition - Raises hood 7" higher than prop rod height & 7" higher than our standard height Hood QuickLIFT System.

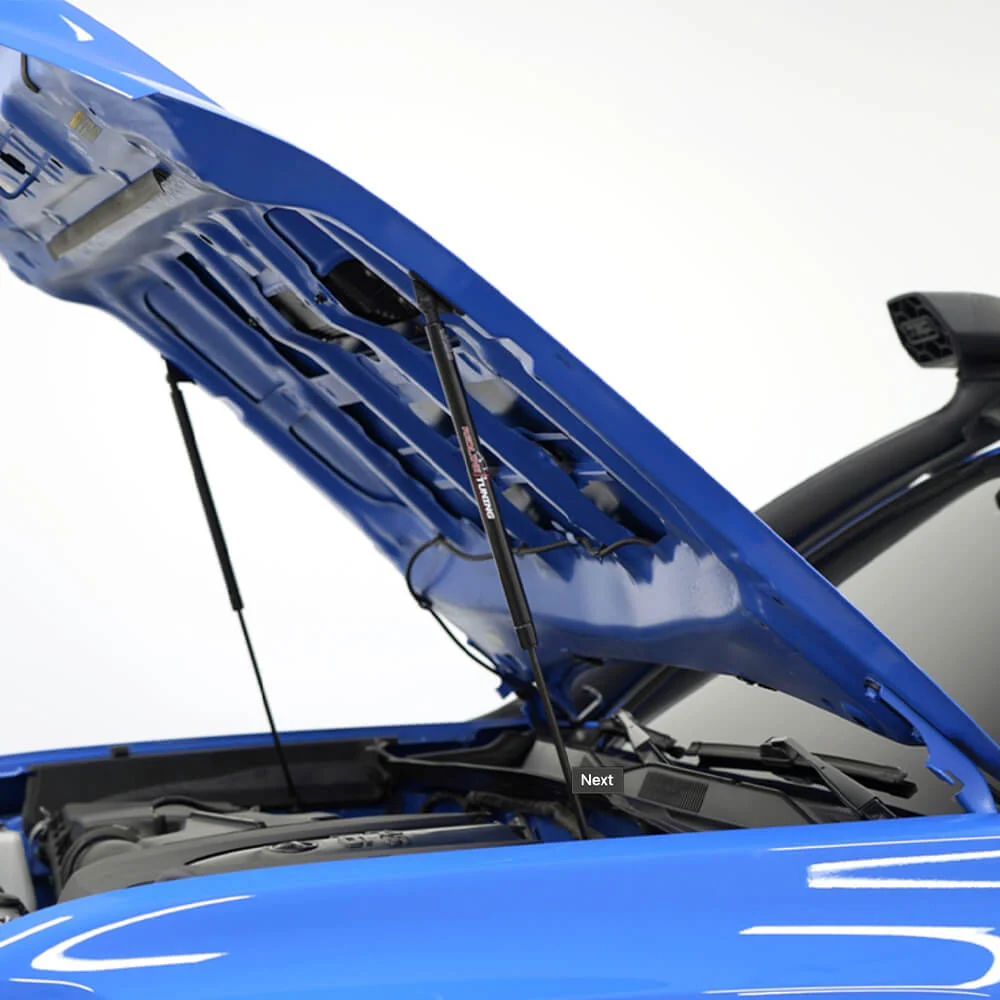

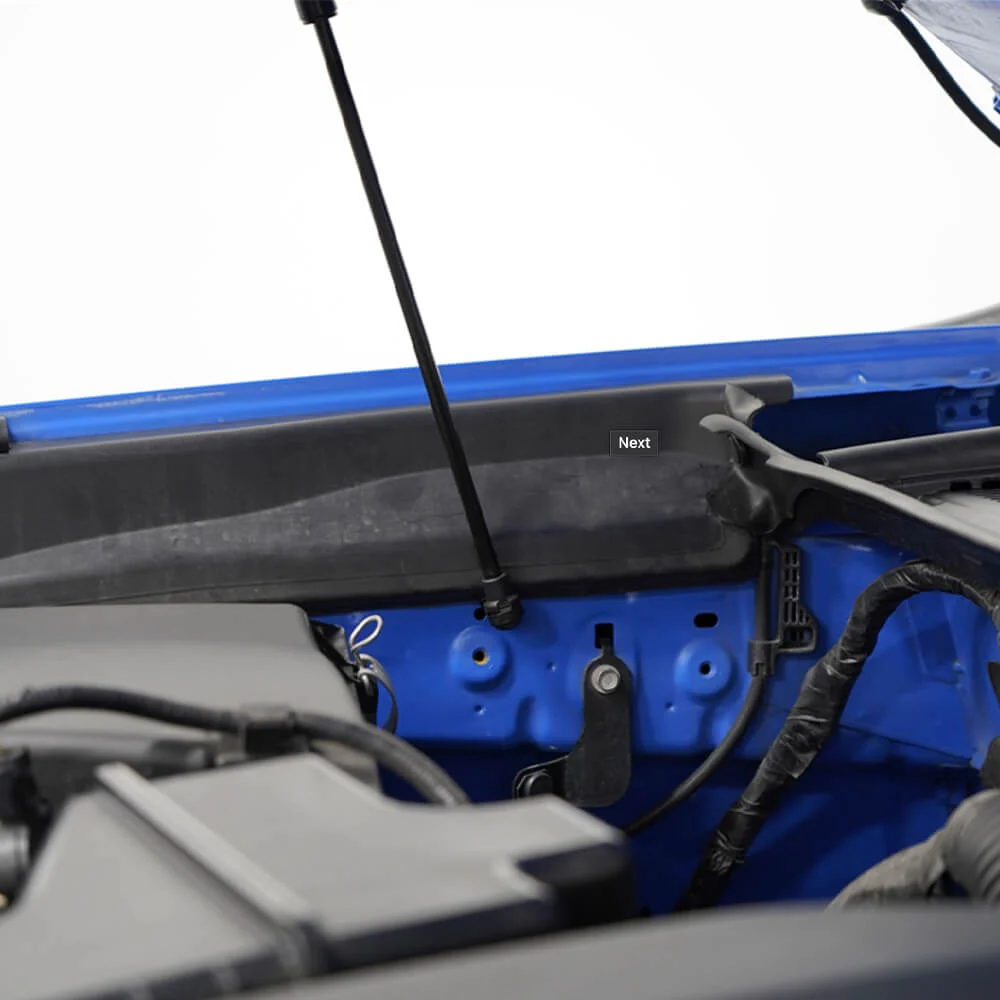

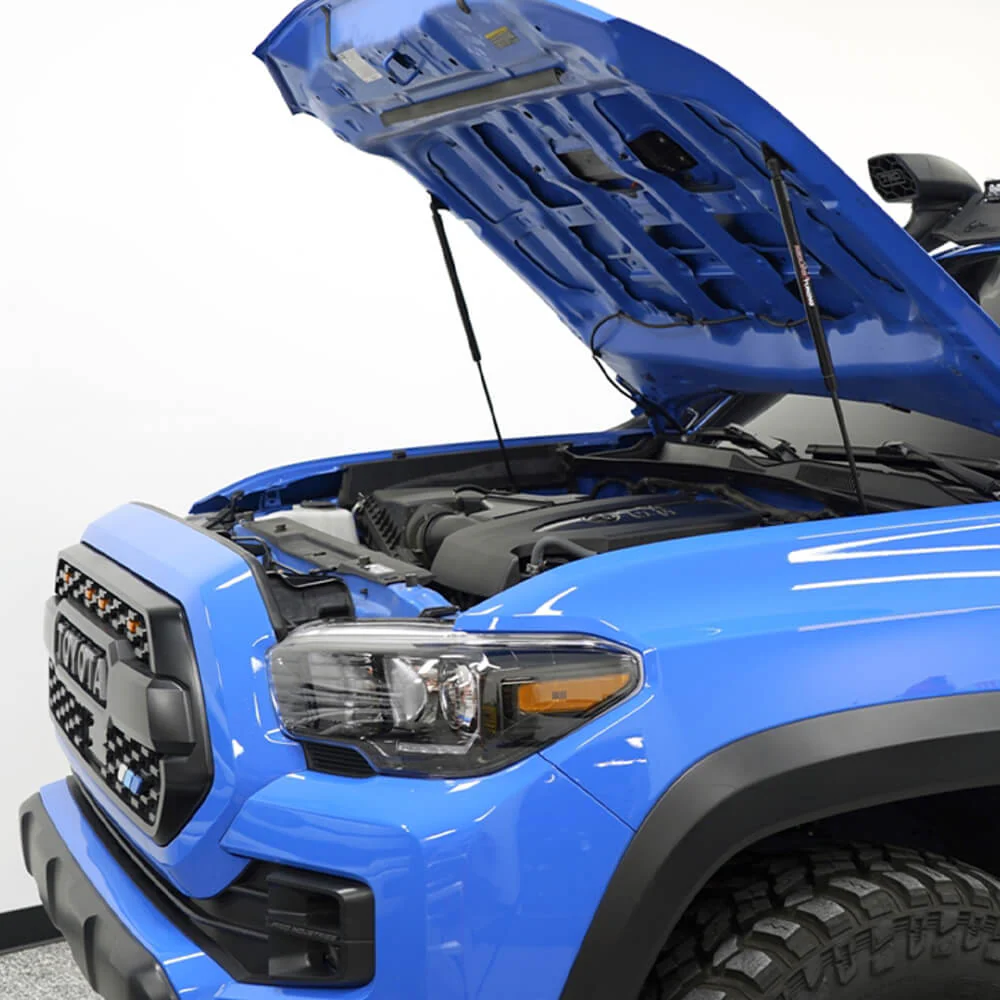

Redline Tuning Hood QuickLIFT Systems are designed to clean up your engine bay by eliminating your hood prop rod. One-handed operation, simply start to lift the hood and it will rise unassisted in a smooth and controlled motion. Redline Tuning is the worldwide leader in aftermarket Hood QuickLIFT systems since 2002 with hundreds of vehicle-specific applications. This system is designed to fit around popular add-ons, like the PowerTray vertical switch pro panel / Switch Pro SP9100 8-switch panel. Our lower ball-stud will fit and clear the tray and components. System will also work with the SDHQ mounting bracket and SwitchPro power module, with slight modification to the SDHQ bracket.

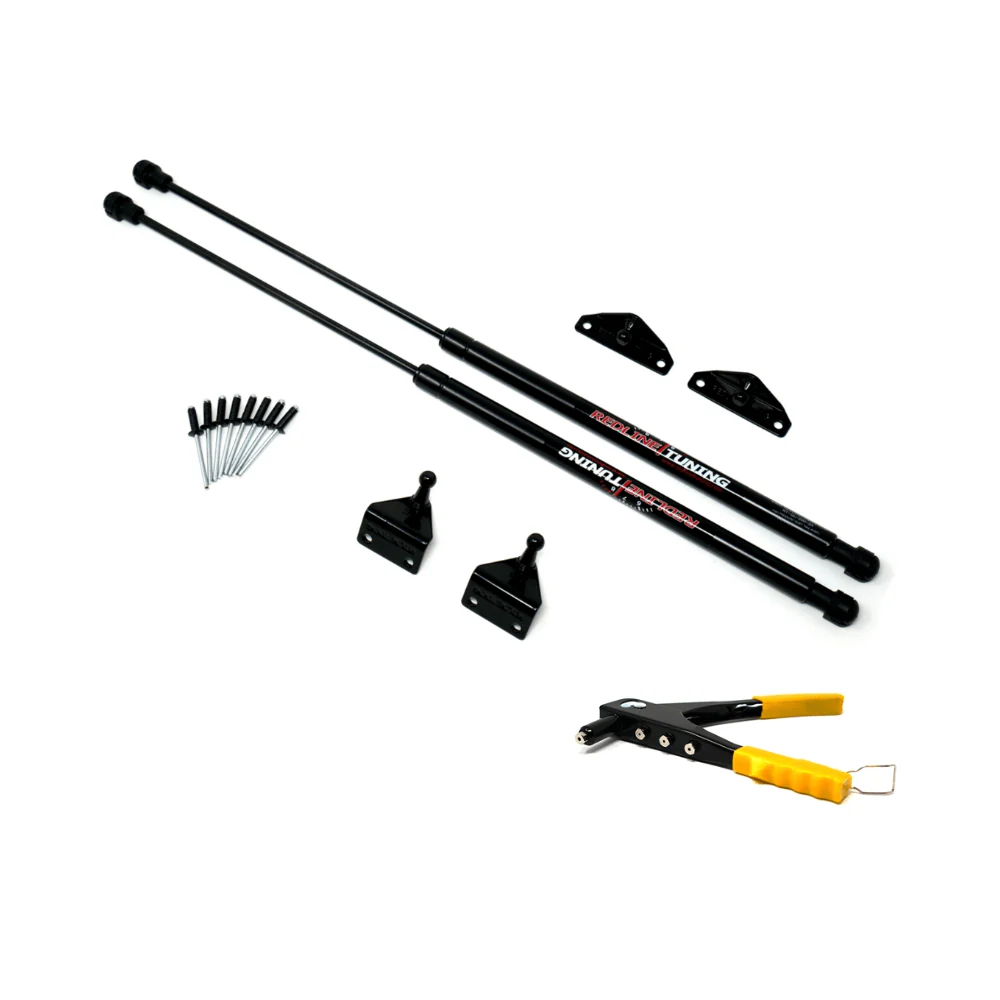

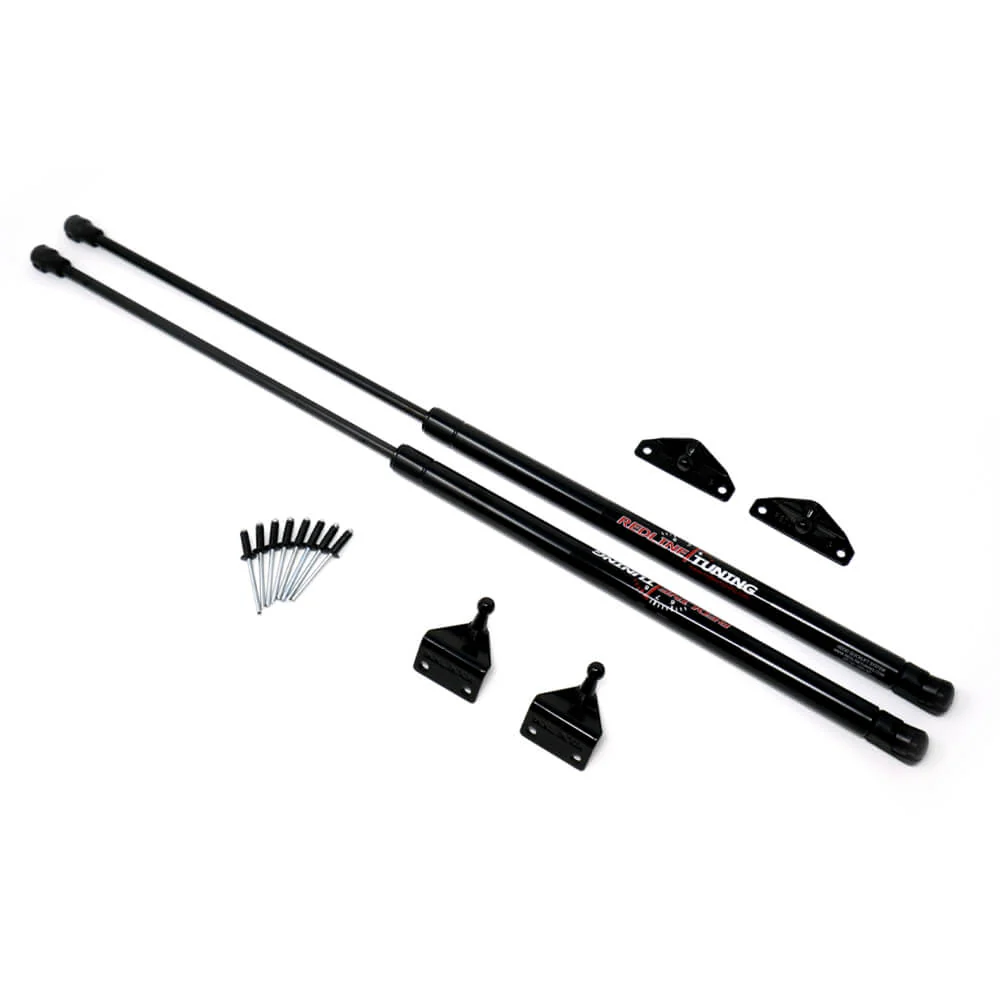

Included:
✔ 2 Black e-coated progressive rate gas springs PN RT-QL-240-5A
✔ 2 Black powder-coated fender brackets PN 32-00019

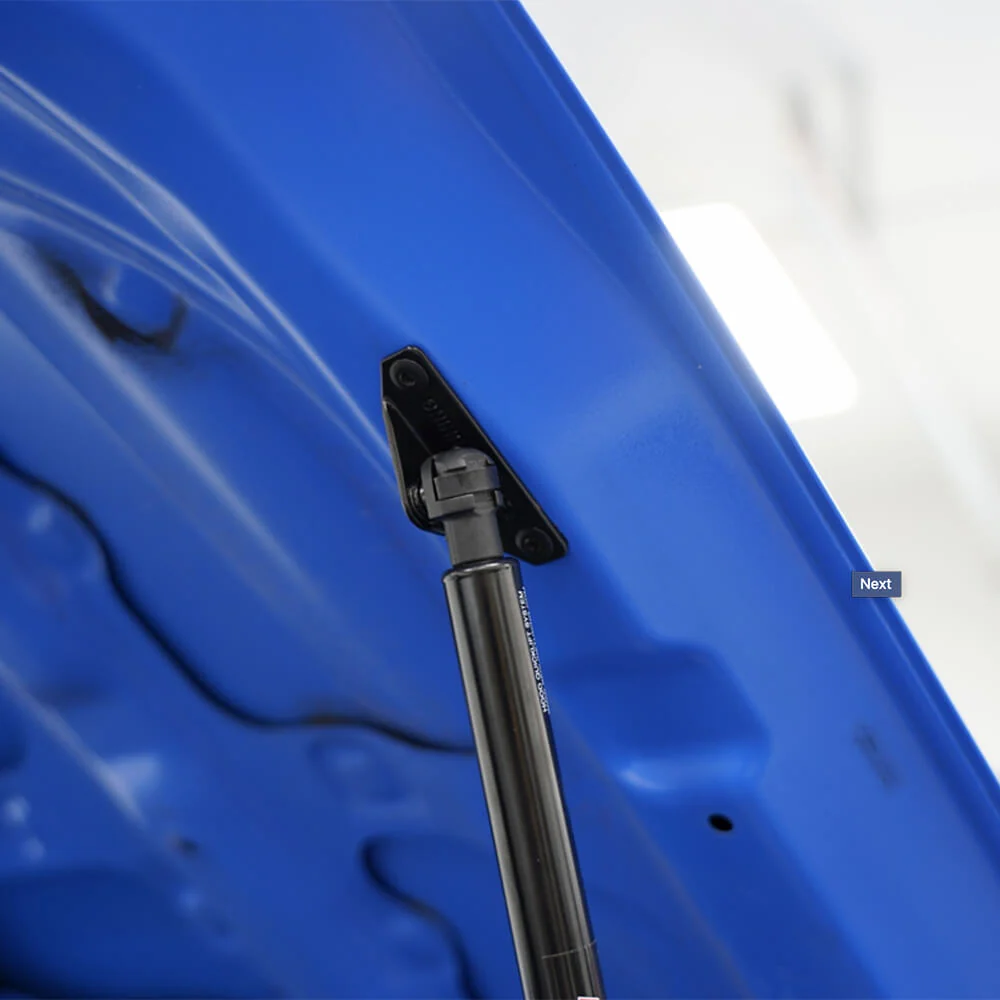

✔ 2 Black powder-coated hood brackets PN 32-00001
✔ 8 #2 Multigrip rivets (black) PN 55-00002
✔ 1 Full color installation manual - Refer to included installation manual as the installation each QuickLIFT System may be different.

Fitment: Toyota Tacoma 2016-2023

Please Note:
➜ Our standard Hood QuickLIFT PLUS for the Tacoma (2016+) (21-27015) puts the hood height at exactly the same height as the prop rod. However, for those who need it to go higher we have developed a new system which raises the hood's height 7" above the prop rod mounting location - this is our max-lift edition. Max Lift Edition is only available in QuickLIFT PLUS form, no stainless ELITE series available in this edition.
➜ Some mounting hardware included in the system requires use of special multi-grip rivets (included) to attach ball stud brackets (drilling is required).

Installation Guide:
